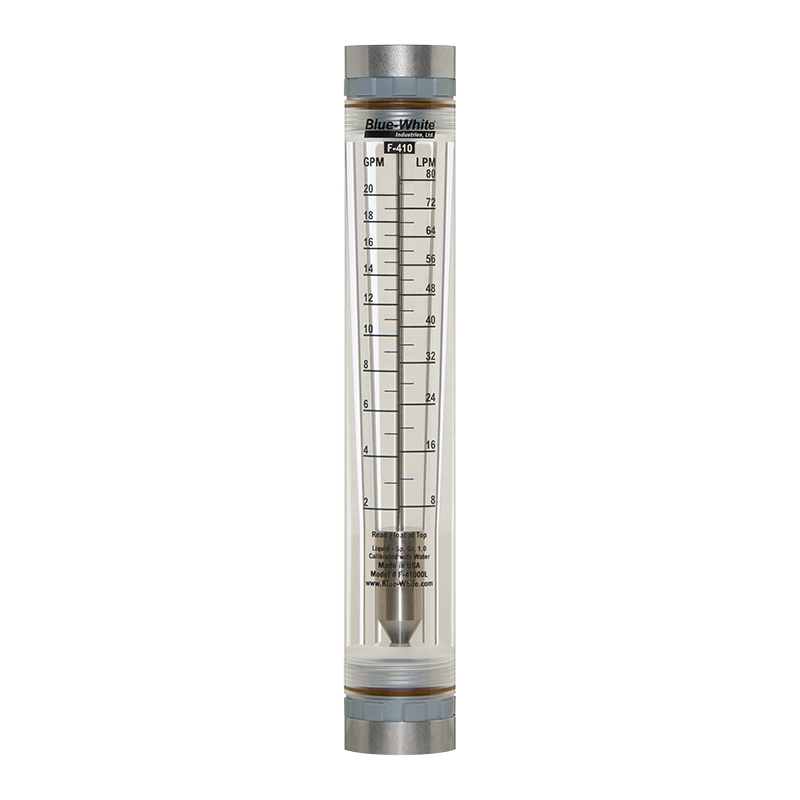

F-410N ACRYLIC FLOWMETER

RM885.00

Out of stock

Pipe sizes: 3/4″ and 1″ F/NPT
Flow from: 1 to 20 GPM (4 to 80 LPM)
Acceptable in Direct Sunlight
Overview
  • Durable, highly polished, one piece meter body.
  • Annealed for added strength and chemical resistance.
  • Acceptable for outdoor installations (acceptable in direct sunlight)
  • Direct reading permanent scale.
  • White back reflector for easy reading.
  • Standard 316 stainless floats and guide rods, optional Hastelloy-C for more corrosive environments.
  • High/Low Alarm models available
Specifications
Max. Working Pressure: 150 PSI (10.3 bar) @ 70˚F (21˚C)
Max. Fluid Temperature: 150°F (65°C) @ 0 psig (316 SS and Hastelloy-C Floats)120°F (49°C) @ 0 psig (PVC Floats)
Full Scale Accuracy: +/- 5%
Meter Body Material: Acrylic
Float Material: 316 SS or PVC (optional Hastelloy-C)
O-ring Seal Material: FKM (Optional EP)
Adapter Material: Polypropylene
Approx. Shipping Weight: 2 lb. (.91 kg)
Flow Ranges

Liquid (Water):

  • 1 – 10 GPM / 4 – 38 LPM
  • 1 – 17 GPM / 4 – 64 LPM
  • 2 – 20 GPM / 8 – 80 LPM

Pipe sizes:

  • 3/4″ female NPT
  • 1″ female NPT
High / Low Alarm Model

FA-410 ACRYLIC TUBE ROTAMETER WITH ALARM

fa410_sensor

    • High surge currents may cause damage to the sensor contacts and significantly reduce its life. The following circuit is highly recommended.

fa410_wiring
FA-410_700ht
