F-300 ACRYLIC FLOWMETER

Pipe sizes: 1″, 1¼″, 1½″, 2″, 2½″, 3″, 4″, 6″, 8″
Flow from: 4 to 1900 GPM (15 to 7200 LPM)
Clamp-On – Insertion Mount
Overview

Model Variations:

  • F-300 = Horizontal flow

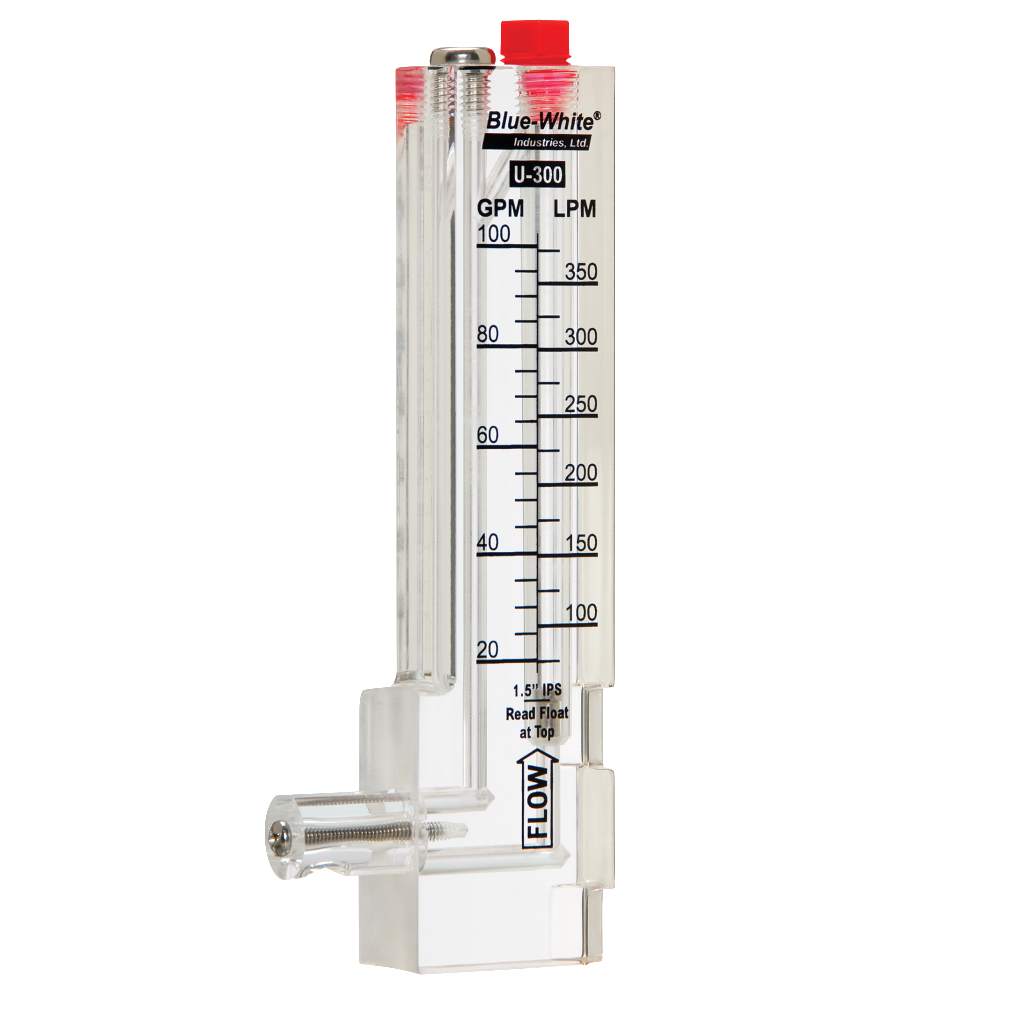

  • D-300 = Vertical down flow
  • U-300 = Vertical up flow
  • NSF 50 LISTED 1”, 1.25”, 1.5”, 2” (L2), 2.5”, 3”, 4”, and 6” (L3) – Horizontal flow only
  • Well suited for closed pipe installations
  • Easy to read dual scale (GPM / LPM), screen printed on both sides of the meter body
  • Acceptable for outdoor installations (direct sunlight okay)
  • Pitot Tube (impact tube) design makes it easy to install on existing pipe
  • One piece, machined acrylic meter body, annealed for added strength and chemical resistance
  • Included SS clamps and gasket seal
  • Standard and Low Flow options available
  • For use on PVC or Copper Pipes (refer to literature)
Specifications
Pipe Sizes: Horizontal Installation: 1″, 1.25″, 1.5″, 2″, 2.5″, 3″, 4″, 6″, 8″Vertical Installation: 1½″, 2″
Max. Working Pressure: 75 PSI (5.17 bar) @ 70˚F (21˚C)
Max. Fluid Temperature: 190˚F / 88˚C @ 0 PSI
Full Scale Accuracy: Old Style F-300:
+/- 10%
NEW F-300 Sizes: 1″, 1.25″, 1.5″, 2″, 50mm horizontal
+/- 5% (5x pipe ID min. inlet pipe length / 2x pipe ID min outlet pipe length)
+/- 2% (10x pipe ID min. inlet pipe length / 5x pipe ID min outlet pipe length)
NEW F-300 Sizes: 2.5″, 3″, 4″, 6″, 8″, 63mm horizontal
+/- 10% (5x pipe ID min. inlet pipe length / 2x pipe ID min outlet pipe length)
+/- 5% (10x pipe ID min. inlet pipe length / 5x pipe ID min outlet pipe length)
Meter Body Material: Acrylic
Gasket Material: Neoprene
Float Material: 316 SS (PTFE low flow units)
Connection Type: Saddle
Pipe Capability: PVC Schedule 40 and Schedule 80 (12% higher reading on sch 80 pipe)Copper Tube Type “K” and “L”
Approx. Shipping Weight: 1” to 4” Pipe: 1 lb. (.454kg)6” and 8″” Pipe: 2 lb. (.907 kg)

NIST Certificates Optional

Flow Ranges

HORIZONTAL PIPE INSTALLATION

MODEL NO. PIPE SIZE STANDARD FLOW
F-30800* 8” IPS 500 – 1900 GPM / 2000 – 7200 LPM
MODEL NO. PIPE SIZE PIPE MATERIAL SCH 40 (GPM) SCH 80 (GPM)
F-30100* 1” IPS PVC 5 – 35 GPM 4 – 26 GPM
F-30125P 1 ¼” IPS PVC 9 – 50 GPM 8 – 40 GPM
F-30150* 1½” IPS PVC 10 – 70 GPM 10 – 60 GPM
F-30200* 2” IPS PVC 20 – 120 GPM 18 – 100 GPM
F-30250P 2½” IPS PVC 29 – 150 GPM 25 – 130 GPM
F-30300P 3” IPS PVC 45 – 240 GPM 40 – 215 GPM
F-30400P 4” IPS PVC 75 – 420 GPM 70 – 375 GPM
F-30600P 6” IPS PVC 170 – 1100 GPM 160 – 1000 GPM

( * ) PVC Pipe: add letter ”P” for Standard Flow
( * ) COPPER Tube: add letter ”T”

MODEL NO. PIPE SIZE PIPE MATERIAL PN 10 (LPM) PN 16 (LPM)
F-30050M 50mm PVC 50 – 350 LPM 50 – 300 LPM
F-30063M 63mm PVC 100 – 475 LPM 75 – 400 LPM
F-30075M 75mm PVC 150 – 700 LPM 150 – 600 LPM
F-30090M 90mm PVC 200 – 850 LPM 200 – 800 LPM
MODEL NO. PIPE SIZE PIPE MATERIAL SCALE (GPM) SCALE (LPM)
F-30100T 1” IPS Copper 4 – 26 GPM 15 – 100 LPM
F-30150T 1½” IPS Copper 10 – 65 GPM 50 – 250 LPM
F-30200T 2” IPS Copper 20 – 105 GPM 75 – 400 LPM

VERTICAL PIPE INSTALLATION

MODEL NO. PIPE SIZE STANDARD FLOW LOW FLOW
D-30150* 1½” IPS 20 – 100 GPM / 75 – 375 LPM 9 – 30 GPM / 30 – 110 LPM
D-30200* 2” IPS 40 – 150 GPM / 150 – 550 LPM 18 – 70 GPM / 60 – 260 LPM
U-30150* 1½” IPS 20 – 100 GPM / 75 – 375 LPM 9 – 30 GPM / 30 – 110 LPM
U-30200* 2” IPS 40 – 150 GPM / 150 – 550 LPM 18 – 70 GPM / 60 – 260 LPM

( * ) PVC Pipe: add letter ”P” for Standard Flow or add letter ”PR” for Low Flow.
( * ) COPPER Tube: add letter ”T” for Standard Flow or add letter ”TR” for Low Flow.

US PVC (ASTM – D-1785), Copper Type “K” or Type “L”, Metric PVC Pipe (DIN 8062)

Note: for more metric model numbers, download metric datasheet 85000-070.

Flow Sensor Accessory

Why do you need a Flow Switch?
Is your recirculation pump working?

Is your recirculation system at the correct flow rate?

Is your chemical pump injecting into a stopped system?

Is your filter clogged?

How Does it work?
Optional Flow Switch / Sensor is designed to detect Flow / No Flow.

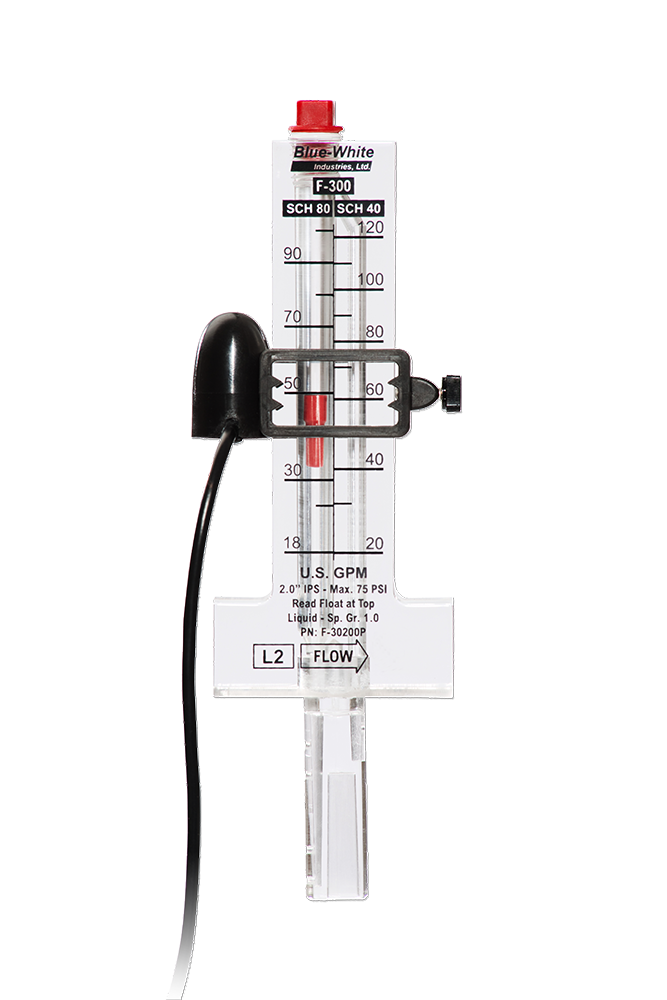

A rare earth magnet is located within the red PVDF float of the new F-300 flowmeters. When the magnet passes through the Alarm Trigger Zone (Hysteresis) of the Sensor Accessory, the built-in contact closure switch sends a signal to external devices.
Note: Two alarms can be placed onto one meter to obtain both ‘Flow Switch’ and ‘Flow Sensor’ capabilities

F-300S

Product Enquiry

    DOWNLOAD LITERATURE

    LITERATURE DOWNLOAD
    Tech. Data Sheet (US) (PDF) (PN 85000-071)
    Tech. Data Sheet (METRIC) (PDF) (PN 85000-070)
    Instruction Manual (1.5″, 2″ Vertical only) (PDF) (PN 80000-046)
    Instruction Manual (PDF) (PN 80000-557)
