| Pipe sizes: 1/4″, 3/8″ and 1/2″ F/NPT |
| Flow from: 0.025 to 5 GPM (0.1 to 20 LPM) |
| Acceptable in Direct Sunlight |

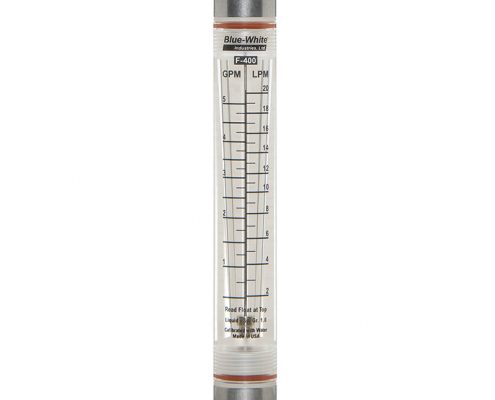

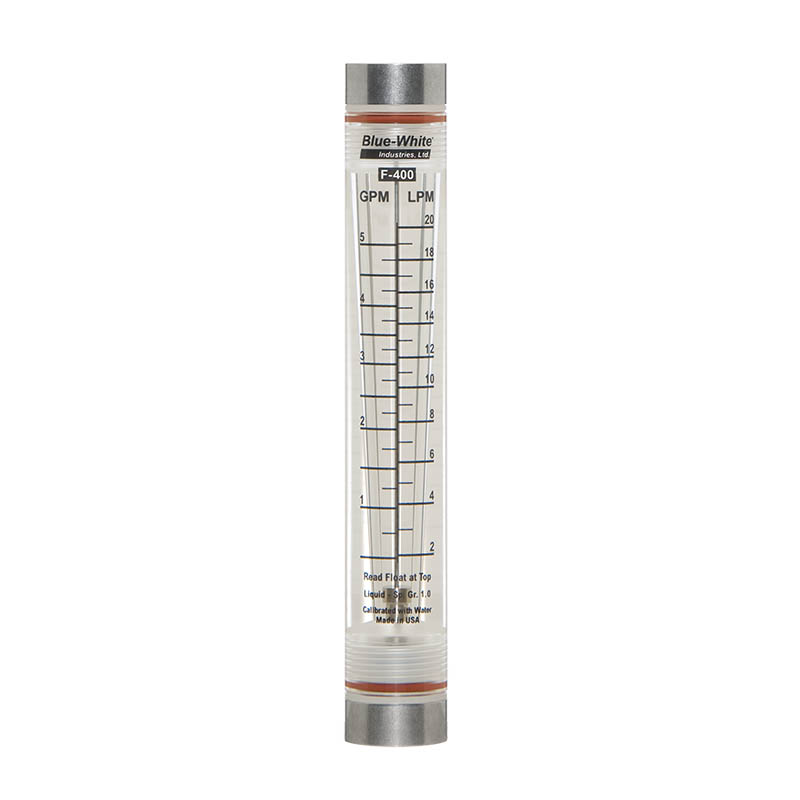

Overview
- Durable, highly polished, one piece meter body.
- Annealed for added strength and chemical resistance.
- Acceptable for outdoor installations (acceptable in direct sunlight)
- Direct reading permanent scale.
- White back reflector for easy reading.
- Standard 316 stainless floats and guide rods, optional Hastelloy-C for more corrosive environments.
Specifications
| Max. Working Pressure: | 150 PSI (10.3 bar) @ 70˚F (21˚C) |
| Max. Fluid Temperature: | 150°F (65°C) @ 0 psig |
| Full Scale Accuracy: | +/- 5% |
| Meter Body Material: | Acrylic |
| Float Material: | 316 SS (optional Hatelloy-C) |
| O-ring Seal Material: | FKM (Optional EP) |
| Adapter Material: | Polypropylene |
| Approx. Shipping Weight: | ½ lb. (.23 kg) |
Flow Ranges
Liquid (Water):
- 0.025 – 0.250 GPM / 0.1 – 1.0 LPM
- 0.1 – 1.0 GPM / 0.4 – 4.0 LPM
- 0.2 – 2 GPM / 1 – 7.5 LPM
- 0.3 – 3.0 GPM / 1.5 – 11 LPM
- 0.5 – 5 GPM / 2 – 20 LPM
