| Max Feed: 9.5GPH (36LPH) – CHEM-FEED® C-1500N |
| Tank sizes include: 7 gallon, 15 gallon, 30 gallon |
Overview

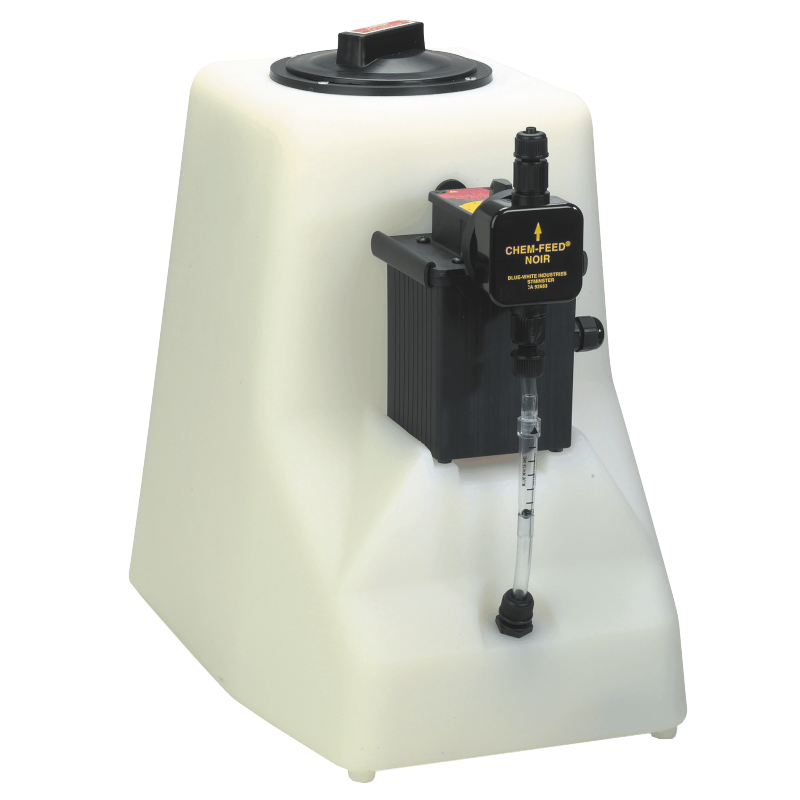

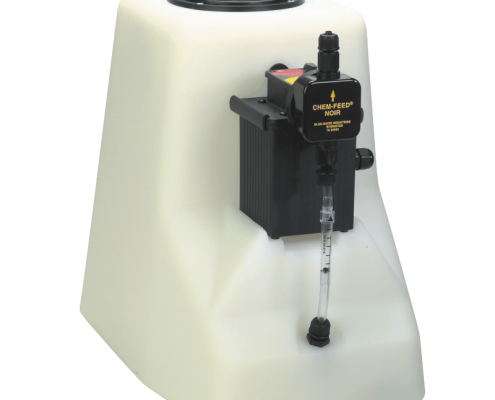

The Star System is equipped with the C-1500N model of your choice – Standard or Deluxe.
- Three Tank capacities to chose from: 7 gallon, 15 gallon, or 30 gallon.
- Polyethylene tank with U.V. inhibitors for sunlight protection.
- The tank has extra heavy wall thickness for stability.
- Lid positions include open, closed, or vent.
- Convenient rectangular shape.
- Flooded suction assists in priming.
- Raised off the floor for easy wash down
- Includes flow indicator and all necessary accessories.
Dimensions
| DIM ‘A’ | DIM ‘B’ | DIM ‘C’ | DIM ‘D’ | DIM ‘E’ | SHIP WEIGHT* | |
|---|---|---|---|---|---|---|
| 7 Gallon | 17.5 (44.5) | 12.0 (30.5) | 16.0 (41.0) | 7.8 (19.7) | 17.0 (43.0) | 19 LBS (9 KGS) |
| 15 Gallon | 22.0 (56.0) | 15.0 (38.0) | 19.5 (50.0) | 7.8 (19.7) | 17.0 (43.0) | 28 LBS (13 KGS) |
| 30 Gallon | 27.0 (69.0) | 20.0 (51.0) | 24.0 (61.0) | 7.8 (19.7) | 17.0 (43.0) | 34 LBS (16 KGS) |
Dimensions = Inch (cm)
*Shipping weight includes the entire Star System with C-1500N pump.
Literature
| LITERATURE | DOWNLOAD |
|---|---|
| Tech. Data Sheet (PDF) (PN 85000-047) | |
| Instruction Manual (PDF) (PN 80000-213) |
