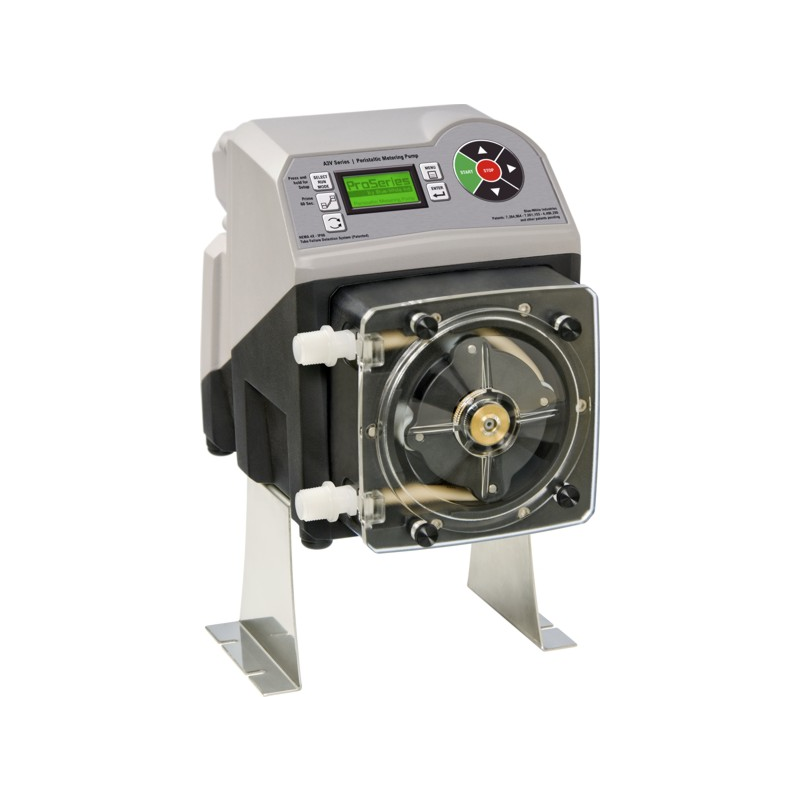

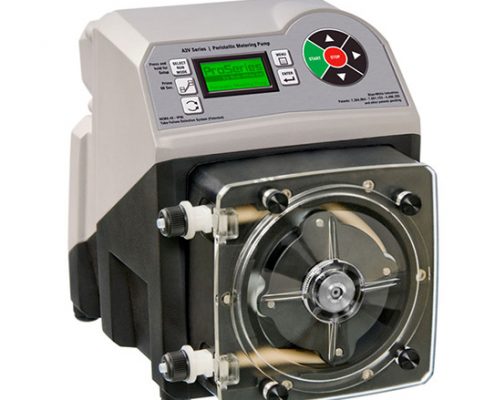

FLEX-PRO® A3

Proseries® Peristaltic Pump

This product is currently out of stock and unavailable.

Max Feed: 33 GPH (125 LPH)
Max Pressure: 125 PSI (8.6 bar)
Description

Flex-Pro A3 Series Peristaltic Pump for high pressure and high accuracy applications.

ETL-Mark-CUS-EPSCE_logoNEMA4XLogoTFD_Logo

Features
  • Benefits of a Peristaltic Pump:
    • Peristaltic pump design does not have valves that can clog requiring maintenance.
    • Self priming – even against maximum line pressure. By-pass valves are not required.
    • Cannot vapor lock or lose prime.

    Capabilities:

    • 2500:1 turndown ratio.
    • Output rates to: 33.3 GPH (126 LPH) and pressures to 125 PSI (8.6 Bar).
    • Inject at maximum pressure in either direction (clockwise and counter clockwise).

    Communication & Interface:

    • SCADA Inputs include: 4-20mA, 0-10Vdc, and Pulse inputs for remote external
      speed control and 0-30 VDC / contact closure remote start/stop.
    • Operator friendly digital touch pad with menu driven software.
    • VGA Graphic multi-color backlit LCD displays remote/local control status, motor speed,
      output rate, input signal values, service and alarm status.
    • Outputs include: Scalable 4-20mA or pulse, one 250V/6A relay and three 115V/1A contact closures
      assignable to monitor up to 17 different pump functions including TFD, FVS, remote/local
      control setting, motor on, fault, current operating mode, and others.
    • Compatible with Blue-White’s output Flow Verification Sensor (FVS) system.

    Superior Engineered Design:

      • Two CNC precision machined squeeze rollers and two alignment rollers for optimum squeeze,
        unparalleled accuracy, and tube life.
      • Heavy duty rotor – single piece plastic rotor means no flexing and increased accuracy with
        no metal springs or hinges to corrode.
      • No maintenance brushless variable speed motor.
      • Specially engineered tubing for long life at high pressures. Meets FDA 21 CFR requirements
        for food contact applications.

    Patented Features:

Specifications
Max. Working Pressure: 125 psig (8.6 bar)
Note: see individual pump tube assembly maximum pressure ratings.
Max. Fluid Temperature: 3/8” OD x 1/4” ID tubing connections: 130°F (54°C)
M/NPT connections: 185°F (85°C)
Note: see individual pump tube assembly maximum temperature ratings.
Ambient Operating Temperature: 14°F to 115°F (-10°C to 46°C)
Ambient Storage Temperature: -40°F to 158°F (-40°C to 70°C)
Maximum Viscosity: 12,000 Centipoise
Maximum Suction Lift: 30 ft. Water at sea level (14.7 atm psi)
Operating Voltage: 96 to 264VAC-50/60Hz, 220W
Power Cord Options: 115V60Hz = NEMA 5/15 (USA)
230V60Hz = NEMA 6/15 (USA)
220V50Hz = CEE 7/VII (EU)
240V50Hz = AS 3112 (Australia/New Zealand)
Motor: Brushless DC
Motor Speed Adjustment Range 2,500:1: 0.04% – 100% motor speed
Motor Speed Adjustment Resolution: 0.1% increments > 10% motor speed
0.01% increments > 1% motor speed and < 10% 0.001% increments < 1% motor speed [/av_cell] [/av_row]
Display: 3 color VGA backlit LCD, UV resistant
Display Resolution: 0.1 > 10% motor speed
0.01 > 1% motor speed and < 10% 0.001 < 1% motor speed [/av_cell] [/av_row]
Keypad: Ten button positive action tactile switch keypad
Enclosure: NEMA 4X (IP66), Polyester powder coated aluminum.
Security: Programmable 4-digit password
Maximum Overall Dimensions: 8-1/8”W x 10-3/4”H x 15-1/4”D (20.6W x 27.3H x 38.9D cm)
Product weight: 33lb. (15.0 Kg)
Approximate shipping wt: 37 lb. (16.8 Kg)
Dimensions
