| Pipe sizes: 1/4″, 3/8″, 3/4″ and 1″ male NPT 1/2″ hose barb |
| Flow from: 0.025 to 20 GPM (0.1 to 75 LPM) |
| Panel Mount Adjustable Valve Available |

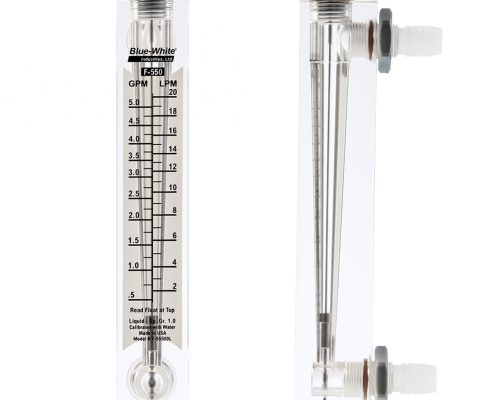

Overview
- Durable, highly polished, one piece meter body.
- Annealed for added strength and chemical resistance.
- Acceptable for outdoor installations (acceptable in direct sunlight)
- Bulkhead nuts attach directly to inside panel.
- Optional adjustable flow control: needle-type adjustment valve.
- Direct reading permanent scale.
- White back reflector for easy reading.
- 316 stainless, PTFE or Hastelloy floats and float guides.
Adapter Options:
- 1/4″, 3/8″, 3/4″, 1″ Male NPT
- 1/2″ Hose Barb
Specifications
| Max. Working Pressure: | 250 psig (17.2 bar) @ 70° F (21° C) |
| Max. Fluid Temperature: | 200° F (93° C) @ 0 PSI |
| Full Scale Accuracy: | +/- 5% |
| Meter Body Material: | Machined Acrylic |
| Adapter Material: | Polypropylene |
| Guide Rod Material: | 316 SS or Hastelloy C-276 |
| O-ring Material: | FKM (Optional EP) |
| Approx. Shipping Weight: | 2 lb. (0.907 kg) |
Flow Ranges
Liquid (water)
- 0.025-0.250 GPM / 0.1-1.0 LPM
- 0.1-1.0 GPM / 0.4-4.0 LPM
- 0.2-2.0 GPM / 0.75-7.5 LPM
- 0.5-5 GPM / 2.0-20.0 LPM
- 1-10 GPM / 4-40 LPM
- 1-5 GPM / 3-18 LPM
- 1-15 GPM / 6-60 LPM
- 2-20 GPM / 7.5-75 LPM
Installation
