| Pipe sizes: 2″ F/NPT 2″ socket fusion |
| Flow from: 2 to 175 GPM (8 to 675 LPM) |
| High Volume |
Overview
- Polysulfone meter body resists high temperatures and pressures.
- 316SS or Hastelloy rod guided float.
- Direct reading permanent scale.
- Adapters and unions engineered for increased protection from misalignment and vibration.
- Custom calibrations, materials, and Private labeling available.
- Very low pressure drop.
- Not recommended for direct sunlight.
- In-Line (vertical) mount only.

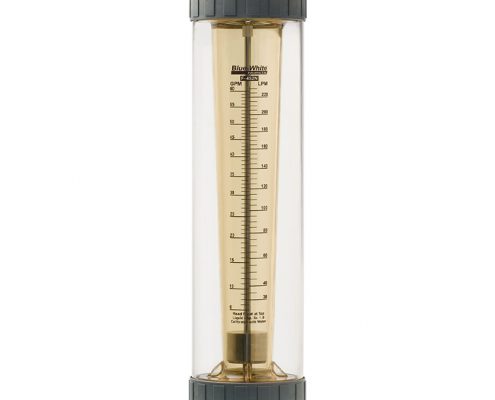

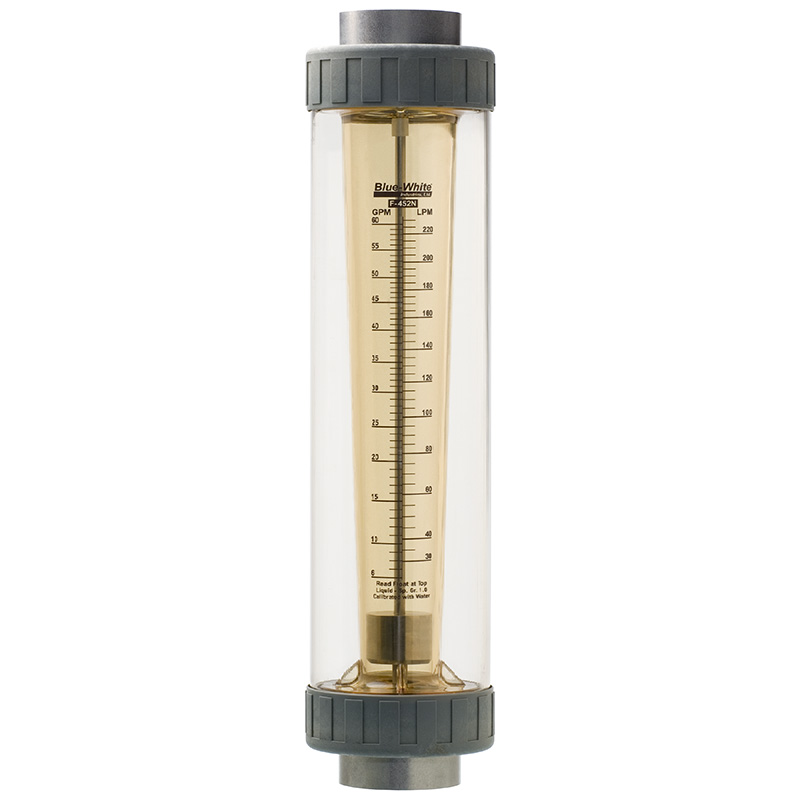

- Optional polycarbonate splash shield
Specifications
| Max. Working Pressure: | 150 psig (10.3 bar) @ 70° F (21° C) |
| Max. Fluid Temperature: | 200° F (93° C) @ 0 PSI |
| Full Scale Accuracy: | +/- 2% |
| Meter Body Material: | Polysulfone |
| Adapter Material: | 2″ F/NPT: Polysulfone2″ Socket Fusion: Polypropylene or PVDF |
| Union Nuts: | Glass fiber reinforced Nylon |
| Guide Rod Material: | 316 SS or Hastelloy C-276 |
| O-ring Material: | FKM (Optional EP) |
| Max Pressure Drop: | 2 PSI |
| Approx. Shipping Weight: | 5 lb. (2.27 kg) |
Scales
Liquid (water)
- 2-20 GPM / 8-78 LPM
- 6-60 GPM / 30-230 LPM
- 8-80 GPM / 40-300 LPM
- 6-100 GPM / 20-380 LPM
- 20-130 GPM / 80-500 LPM
- 25-175 GPM / 100-675 LPM
