BLUE WHITE F-450N POLYSULFONE MOLDED

RM1,582.00

Out of stock

Pipe sizes: 1″ female NPT (Polysulfone) 1-1/2″  female NPT (PVC)
Flow from: Liquid: 0.5 to 40 GPM (2 to 155 LPM)
Panel Mount, Sheild, and Brass Adapters Available
Overview
  • Polysulfone meter body resists high temperatures and pressures.
  • 316 SS, PTFE or Hastelloy rod guided float.
  • Direct reading permanent scale.
  • Not recommended for direct sunlight.
  • Available OEM options: Private labeling, custom calibrations and custom materials.
  • In-Line (vertical) mount only.

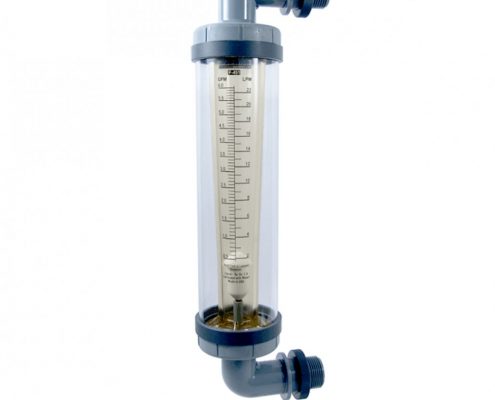

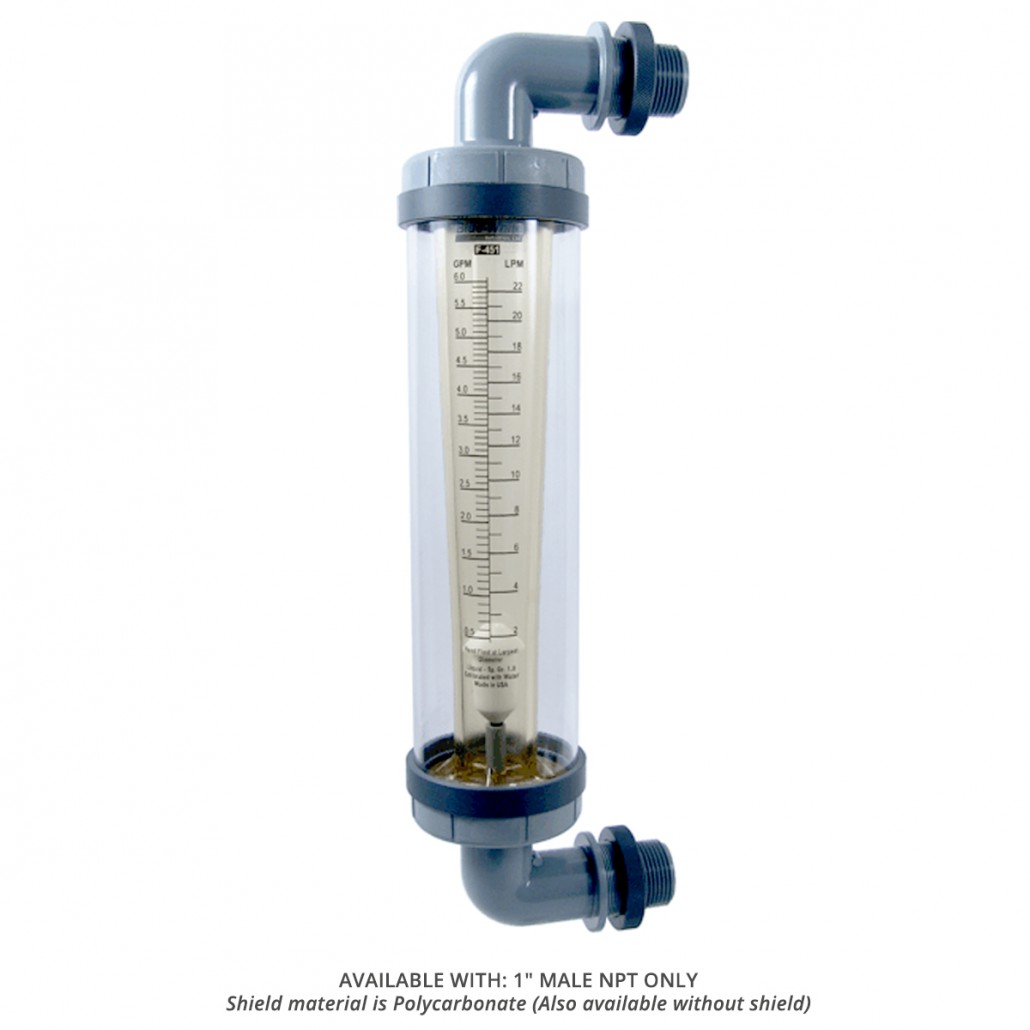

  • Polycarbonate shield available.

Adapter Options:

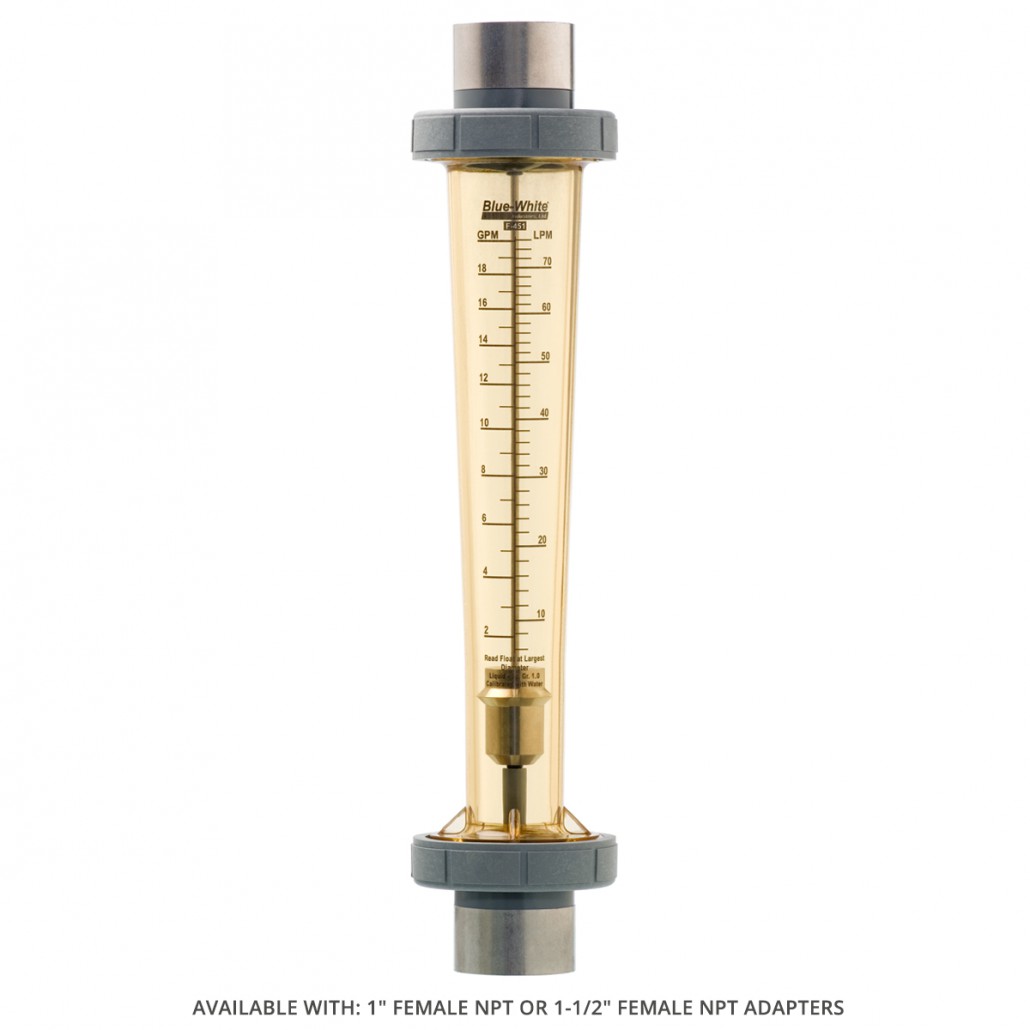

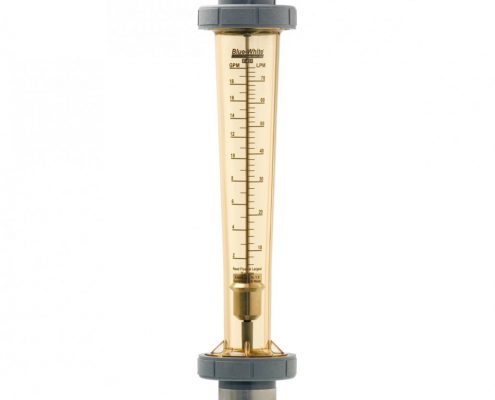

  • 1” and 1-1/2” Inline units.

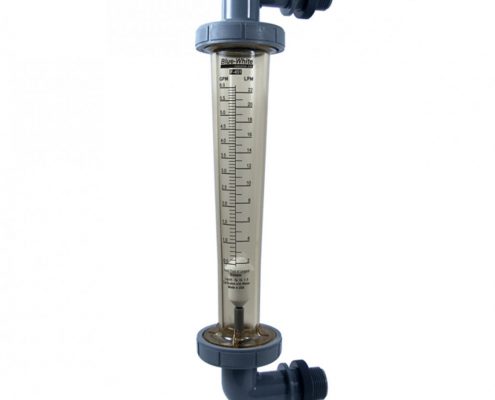

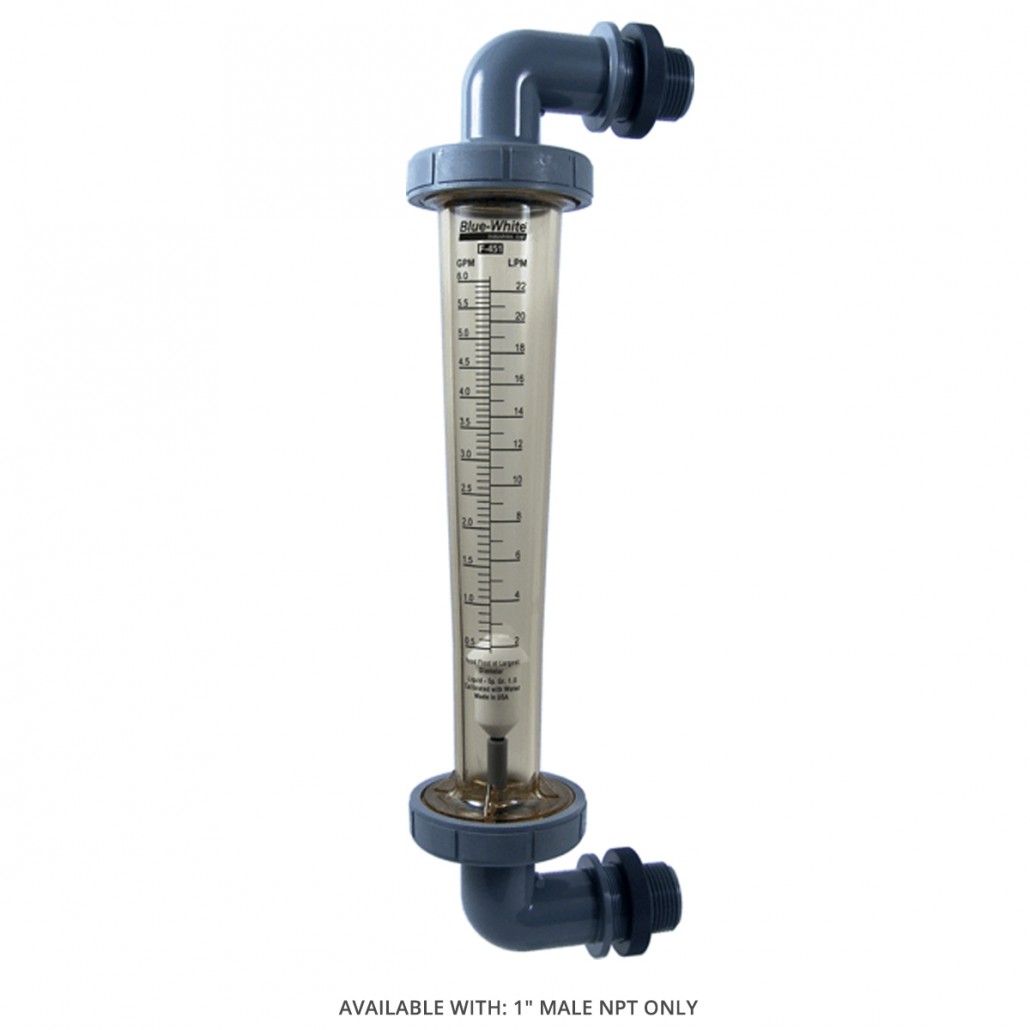

  • 1” M/NPT panel mount units.
  • 1” F/NPT and 1” sweat brass units.
Specifications
Max. Working Pressure: 150 psig (10.3 bar) @ 70° F (21° C)
Max. Fluid Temperature: Standard Models, 1” pipe: 212° F (100° C) @ 0 PSI

Standard Models, 1½” pipe: 130° F (54° C) @ 0 PSI

SolarMeter®: 240° F (115° C) @ 0 PSI

Full Scale Accuracy: +/- 3%
Meter Body Material: Polysulfone
Adapter Material: Standard Models, 1” pipe: Polysulfone

Standard Models, 1½” pipe: PVC

SolarMeter®: Brass

Union Nuts: Glass fiber reinforced Nylon
Guide Rod Material: 316 SS or Hastelloy C-276
O-ring Material: FKM (Optional EP)
Max Pressure Drop: 2 PSI
Approx. Shipping Weight: 3 lb. (1.36 kg)
Scales

Liquid (water)

  • 0.5-6 GPM / 2-22 LPM
  • 1-10 GPM / 4-40 LPM
  • 2-20 GPM / 6-76 LPM
  • 3-30 GPM / 10-115 LPM
  • 4-40 GPM / 15-155 LPM
Model Numbers

1” F/NPT Polysulfone Adapters

GPM RANGE LPM RANGE IN-LINE MODEL NO. PANEL MOUNT MODEL NO. SHIELDED MODEL NO. IN-LINE, K-SERIES MODEL NO.
0.5–6 2-22 F-451006LHN F-451006LHNE F-451006LHNC F-451006LHKN
1–10 4-40 F-451001LHN F-451001LHNE F-451001LHNC F-451001LHKN
2–20 6-76 F-451002LHN F-451002LHNE F-451002LHNC F-451002LHKN
3-30 10-110 F-451003LHN F-451003LHNE F-451003LHNC F-451003LHKN
4-40 15-155 F-451004LHN F-451004LHNE F-451004LHNC F-451004LHKN

1” Brass Adapters

GPM RANGE LPM RANGE F/NPT MODEL NO. SWEAT MODEL NO.
0.5–6 2-22 F-451006LHBPN F-451006LHBSN
1–10 4-40 F-451001LHBPN F-451001LHBSN
2–20 6-76 F-451002LHBPN F-451002LHBSN
3-30 10-110 F-451003LHBPN F-451003LHBSN
4-40 15-155 F-451004LHBPN F-451004LHBSN

1-1/2” F/NPT PVC Adapters

GPM RANGE LPM RANGE IN-LINE MODEL NO. SHIELDED MODEL NO. IN-LINE, K-SERIES MODEL NO.
0.5–6 2-22 F-451006LHN-24 F-451006LHNC-24 F-451006LHKN-24
1–10 4-40 F-451001LHN-24 F-451001LHNC-24 F-451001LHKN-24
2–20 6-76 F-451002LHN-24 F-451002LHNC-24 F-451002LHKN-24
3-30 10-110 F-451003LHN-24 F-451003LHNC-24 F-451003LHKN-24
4-40 15-155 F-451004LHN-24 F-451004LHNC-24 F-451004LHKN-24

Contact Blue-White for OEM Options: Private Labeling, Custom Calibration, Custom Materials.

Product Enquiry

DOWNLOAD LITERATURE

LITERATURE DOWNLOAD
Tech. Data Sheet (PDF) (PN 85000-091)
Instruction Manual (PDF) (PN 80000-441)
F-450N Inline Exploded View
F-450N Panel Mount Exploded View
F-450N Panel Mount / Adjustable Exploded View
