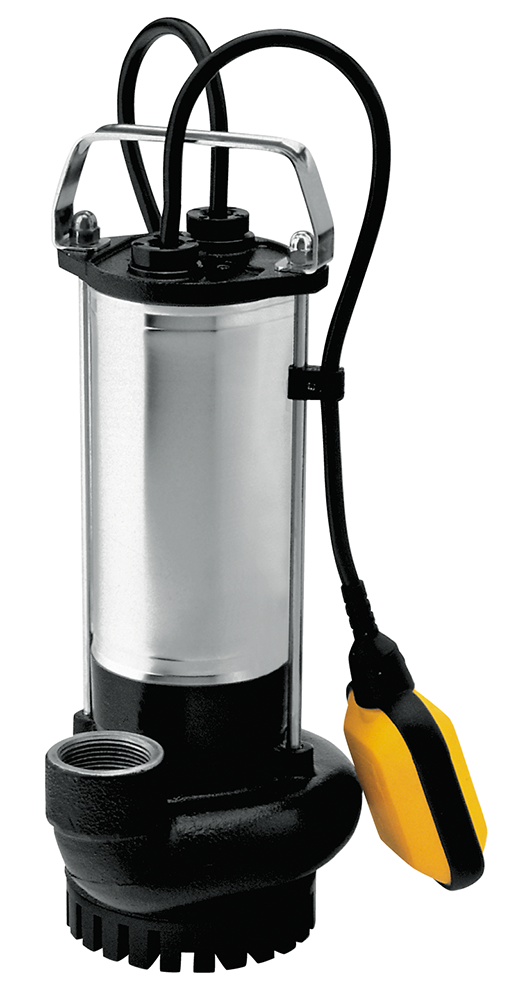

ESPA Drain 100 Submersible Pump

Very compact submersible electric pump for drainage; removing clean water, infiltration water and emptying ponds, swimming pools and tanks, and for household applications.

Especially recommended for applications in decorative fountains, waterfalls and pond jets.

It is designed using highly abrasion-resistant materials and it has a very compact, sturdy appearance, especially in continuous-operation applications.

They have a reliable double mechanical closure system made of silicon carbide, ceramic and graphite with ceramic, to prevent malfunctions in the electric motor. They can be supplied with a level switch included in the single-phase versions to save as much time as possible during installation and to ensure optimum automatic operation.

All parts in contact with water are coated with an anti-corrosion treatment.

Their oversized motor makes them excellent for prolonged, worry-free operation. They can operate partially submerged although, for optimum operation, it is advisable to make sure they are submerged. It allows the passage of 8-mm solids, with a suction grille at the base.

They are supplied with 10 m of cable and an external condenser.

They are equipped with 1 1/4″ H axial outlet to minimise the installation space required.

Performance Features

Electric Features

Three-phase models Intensity [A] Input power P1 [kW] Motor power P2 Condenser capacity [µF]
50 Hz 3~ 230V 3~ [kW] [HP] 1~
3,10 0,70 0,75 1,01

Hydraulic features:

Three-phase models Flow [m³/h] 0,0 1,8 3,6 5,4 7,2 9,0 10,8 12,6 14,4 16,2 18,0
9,9 9,7 9,4 9,0 8,4 7,7 6,8 5,7 4,6 3,2 1,7
Series features Drain 100


  • Check valve: No
  • Draining plug: No
  • Fittings: Screw
  • Handle: Included
  • Pre-filter: Included
  • Support base: Included

Electrical characteristics

  • Electrical isolation: F Class
  • Motor speed operation: Constantly speed
  • Motor type: Asynchronous
  • Protection rating: IP68
  • Reset: Automatic
  • Service factor: S1
  • Service type: Continuous
  • Manufacturing characteristics
  • Discharge connection type: Nut
  • Discharge diameter: 1 1/4″ G
  • Motor cooling: Water
  • Solid passage (mm): 7
  • Stages: Single-Stage Centrifugal Pump
  • Tightness by: Mechanical Seal


  • Discharge body: Grey Steel Cast
  • Mechanical seal: Aluminium-Steatite
  • Mechanical seal bracket: Cast GG0
  • Motor casing: Stainless steel AISI 304
  • Nuts and bolts: Stainless steel AISI 304
  • Outer pump body: Stainless steel AISI 304
  • Pre-filter: Grey Steel Cast
  • Suction body: Cast GG0
  • Support base material: Grey Steel Cast

Usage limits

  • Liquid temperature (ºC): Min: 4 – Max: 35
  • Maximum no. of motor start-ups (start-ups/minute): 0,50
  • Maximum submersion (m): 10
  • Maximum working pressure (bar): 6
